Infrastructure Details#

The infrastructure consists of a k8s cluster made of:

  • A Master node with 16 CPUs, 32 GB RAM, 80 GB disk;

  • 7 worker nodes with 16 CPUs, 32 GB RAM, 80 GB disk.

On such cluster, a JupyterHub is deployed where the users can deploy a JupyterLab session to get access to a full IDE (persistent storage, terminal, notebooks, editors, …).

Users can scale up their computation, using Dask, by offloading to external resources:

  • 70 worker nodes, each with 502 GB RAM and 96 core in total, shared among projects;

  • Access “grid-like” with cvmfs available (both cern.ch and infn.it repositories).

These nodes are accessible via HTCondor-CE and the connection is totally transparent for the user (using the InterLink service).

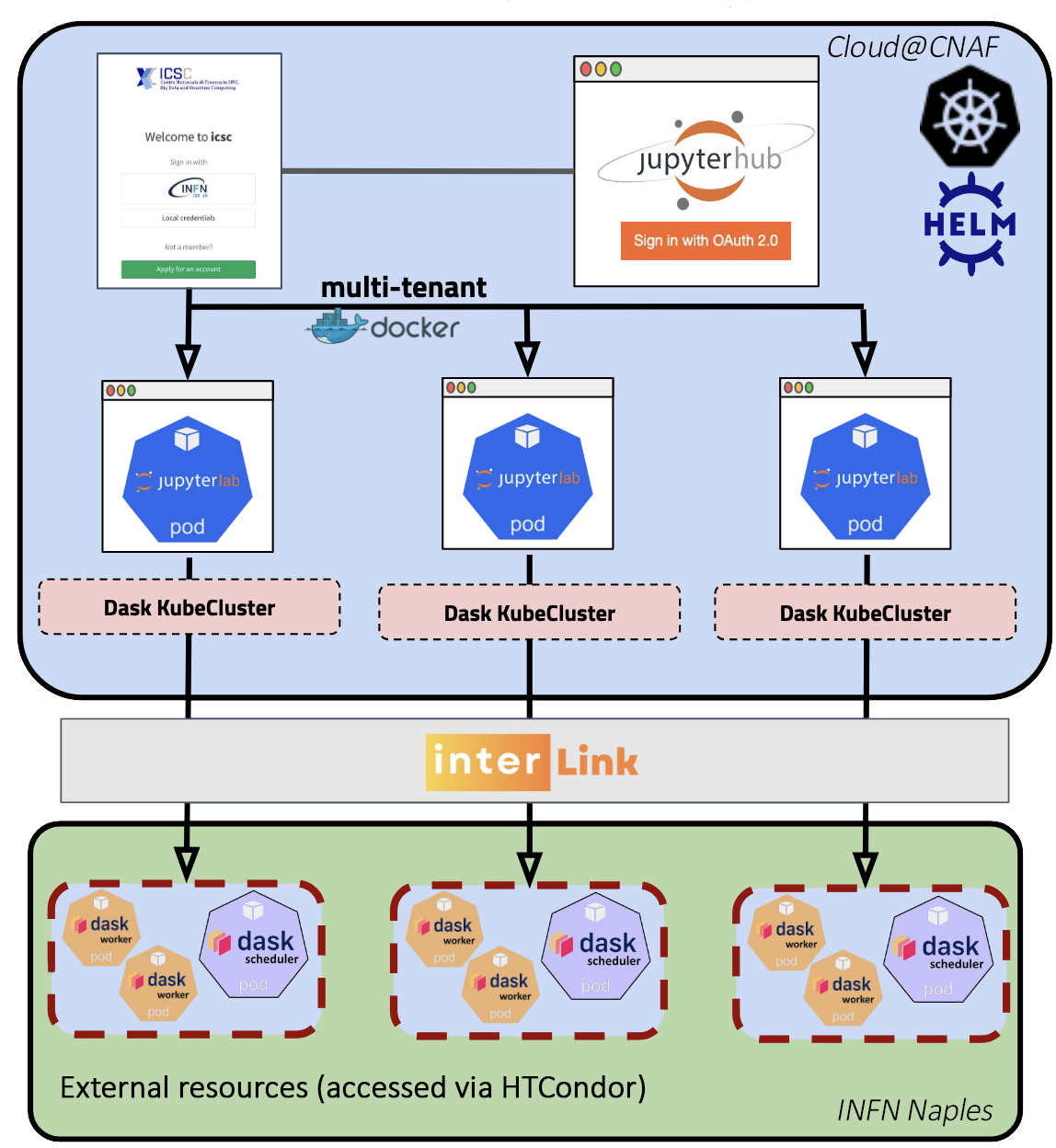

Below a simplified diagram of the High Rate platform:
